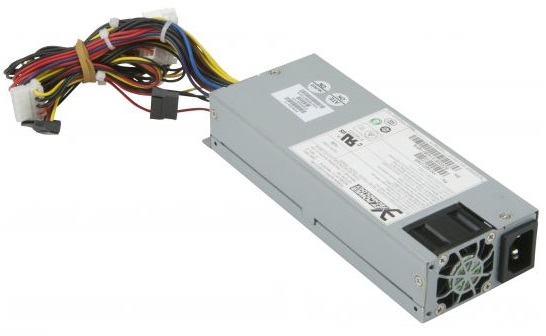

Блок питания Supermicro PWS-202-1H
86.25 грн.
- 200W
- Designed for Supermicro 1U Servers
- 20 Pin ATX Output
- 82% Peak Efficiency
- Supermicro Certified
| Total Power Output | 200W |
|---|---|
| Type | Single |
| Type of Power Supply | Power Supply |
| Form Factor | 1U |
| Dimension (W x H x L) | 76 x 40.3 x 192 mm |
| +5V | 16A |
| +12V | 15A |
| +3.3V | 17A |
| 5V Standby | 2A |
| Input Voltage Range | 100-240 V |
| Input Frequency Range | 50-60 Hz |
| Input Current Range | 3-1.5 A |
| Output Type | 20Pin ATX Cable Output |
| 8Pin / 4Pin (12V) Connector | 8-Pin |
| PFC | Yes |
| Voltage / Current | No |
| Energy Efficiency | 82% Peak |
| 80 Plus Certification | N/A |
| Validated Systems | SYS-5017C-LF, SYS-5018A-MHN4, SYS-5018A-MLHN4, SYS-5018A-MLTN4 |
| Validated Chassis | CSE-502L-200B, CSE-503L-200B, CSE-510L-200B, CSE-512L-200B |
| Warranty | 1 year warranty |
| Product Environmental Compliance | RoHS and REACH compliant, details available upon request |
